სპეციალური დანიშნულების ექსკავატორები

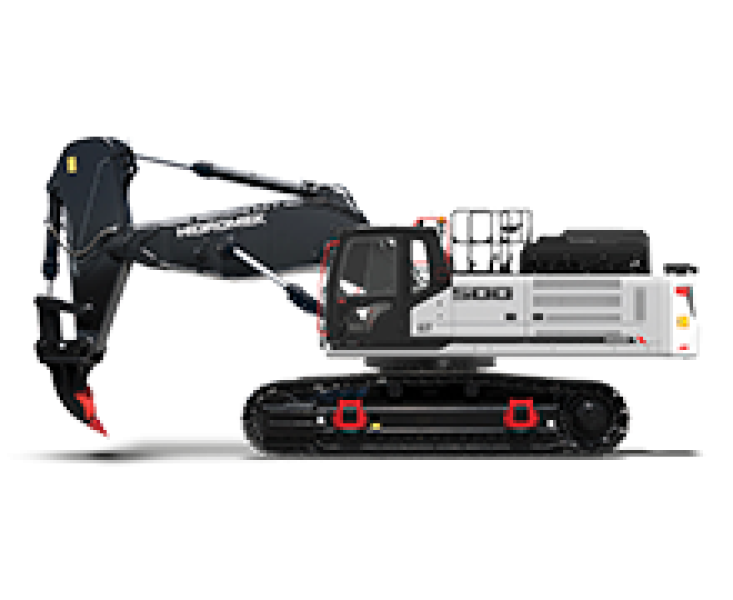

HMK 500 R
HMK 500 R
ბრენდი
HIDROMEK
კატეგორია
სპეციალური დანიშნულების ექსკავატორები
HMK 500 R Hmk 500 r special purpose excavator provides more
სპეციფიკაციები
DIGGING PERFORMANCE
Ripper Digging Force (ISO)
52.700 kgf
ENGINE
Brand - Model
ISUZU
Type
Water-cooled, 4 cycle, 6 cylinders, line type, direct injection, turbocharger, intercooler, diesel engine
Maximum Power
362 HP (270 kW) @1950 rpm
Maximum Torque
1435 Nm @1500 rpm: Double variabl
Displacement
9839 cc
Number of cylinders
6
Bore x Stroke
120 mm x 145 mm
HYDRAULIC SYSTEM
Type
Double variable displacement axial piston pumps
Maximum Flow
2 x 376 L/min
Pilot Pump
29 L/min
Attachment
330 kgf/cm2
Power Boost
355 kgf/cm2
Travel
330 kgf/cm2
Swing
300 kgf/cm2
Pilot
40 kgf/cm2
SWING SYSTEM
Swing Speed
8,1 rpm
TRAVEL
Maximum Drawbar Pull
35,485 kgf
High Speed
4,60 km/h
Low Speed
2,80 km/h
WORKING DIMENSIONS
Minimum Swing Radius
3.640 mm
Maximum Digging Reach
7.940 mm
Maximum Reach at Ground Level
7.560 mm
Maximum Digging Depth
3.280 mm
OPERATING WEIGHT
OPERATING WEIGHT
54.700 kg
