სპეციალური დანიშნულების ექსკავატორები

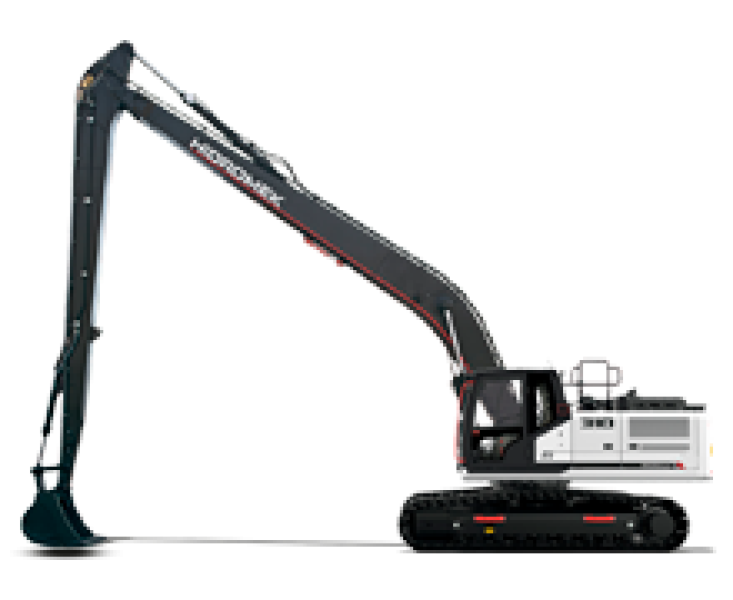

HMK 310 LC LR
HMK 310 LC LR
ბრენდი
HIDROMEK
კატეგორია
სპეციალური დანიშნულების ექსკავატორები
HMK 310 LC LR Being produced with developed hydraulic system design, hi̇dromek’s new h4 series excavators offer an outstanding performance by working faster, more productively and more efficiently. h4 series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.
General Information
Producing solutions for different applications, HİDROMEK fully meets customer expectations in this segment with the HMK 310 LCLR model developed specifically for canal cleaning, stream improvement and sand quarries.
სპეციფიკაციები
DIGGING PERFORMANCE
Arm Crowd Force (ISO)
6.900 kgf
ENGINE
Brand - Model
ISUZU
Type
Water-cooled, 4 cycle, 6 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Maximum Power
239 HP (178 kW) @1900 rpm
Maximum Torque
1014 Nm @1400 rpm
Displacement
7790 cc
Number of cylinders
6
Bore x Stroke
115 mm x 125 mm
Emission Class
Stage-IIIA
HYDRAULIC SYSTEM
Type
2 axial piston type pumps with doublevariable displacement and inclined plate
Maximum Flow
2 x 259 L/min
Pilot Pump
27 L/min
Attachment
350 kgf/cm2
Power Boost
380 kgf/cm2
Travel
350 kgf/cm2
Swing
285 kgf/cm2
Pilot
40 kgf/cm2
SWING SYSTEM
Swing Speed
10,4 rpm
TRAVEL
High Speed
5,1 km/h
Low Speed
3,0 km/h
WORKING DIMENSIONS
Maximum Digging Depth (2440 mm level)
14.140 mm
Minimum Swing Radius
5.930 mm
Maximum Reach at Ground Level
18.240 mm
Boom Dimension
10.300 mm
Arm Dimensions
7.800 mm
Maximum Digging Depth
14.250 mm
Maximum Dumping Height
12.550 mm
OPERATING WEIGHT
OPERATING WEIGHT
35.100 kg
