სპეციალური დანიშნულების ექსკავატორები

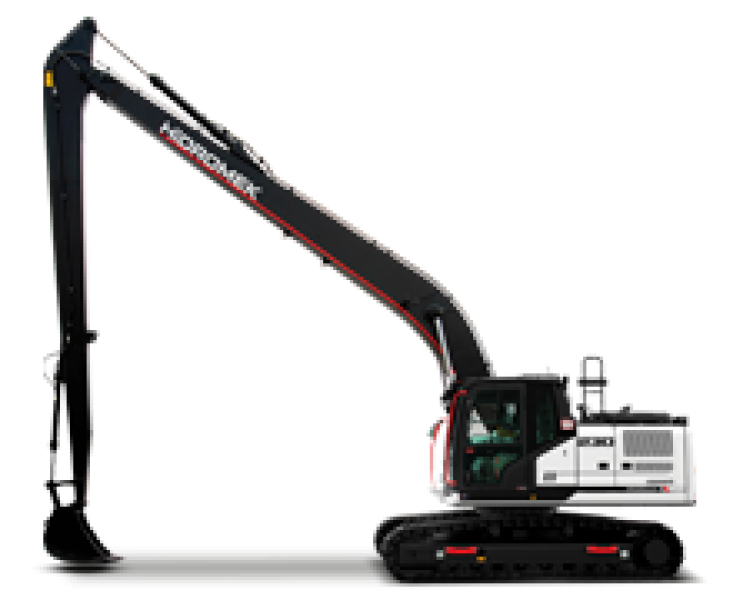

HMK 230 LC LR
HMK 230 LC LR
ბრენდი
HIDROMEK
კატეგორია
სპეციალური დანიშნულების ექსკავატორები
HMK 230 LC LR Being produced with developed hydraulic system design, hi̇dromek’s new h4 series excavators offer an outstanding performance by working faster, more productively and more efficiently. h4 series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.
General Information
Producing solutions for different applications, HİDROMEK fully meets customer expectations in this segment with the HMK 230 LCLR model developed specifically for canal cleaning, stream improvement and sand quarries.
სპეციფიკაციები
ENGINE
Brand - Model
ISUZU
Type
Water-cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Maximum Power
161 HP (120 kW) @2000 rpm
Maximum Torque
151 HP (113 kW) @2000 rpm
Displacement
5193 cc
Number of cylinders
4
Bore x Stroke
115 mm x 125 mm
HYDRAULIC SYSTEM
Type
Double variable displacement axial piston pumps
Maximum Flow
2 x 221 L/min
Pilot Pump
20 L/min
Attachment
350 kgf/cm2
Power Boost
370 kgf/cm2
Travel
350 kgf/cm2
Swing
306 kgf/cm2
Pilot
40 kgf/cm2
SWING SYSTEM
Swing Speed
11,9 rpm
TRAVEL
Maximum Drawbar Pull
18.035 kgf
High Speed
5,8 km/h
Low Speed
3,8 km/h
WORKING DIMENSIONS
Maximum Digging Depth (2440 mm level)
11.320 mm
Minimum Swing Radius
4.290 mm
Maximum Reach at Ground Level
14.960 mm
Boom Dimension
8.500 mm
Arm Dimensions
6.100 mm
Maximum Digging Depth
11.450 mm
OPERATING WEIGHT
OPERATING WEIGHT
25.850 kg
