სპეციალური დანიშნულების ექსკავატორები

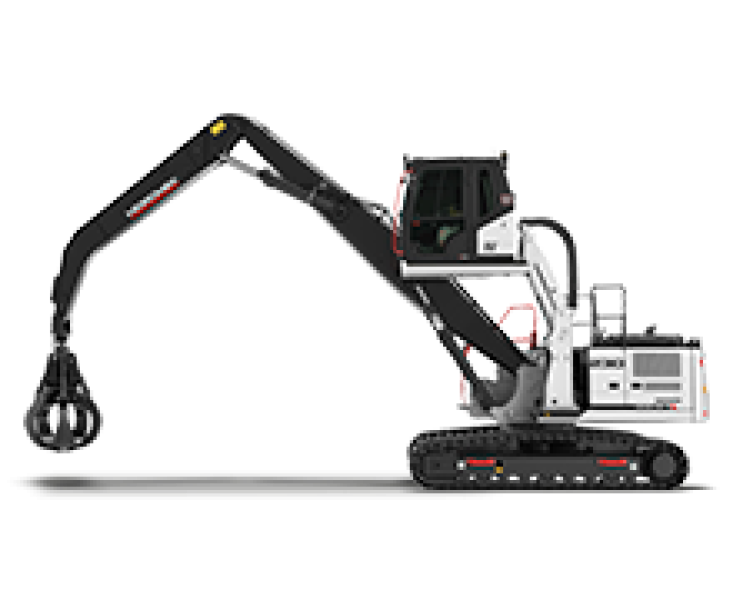

HMK 230 LC MH
HMK 230 LC MH
ბრენდი
HIDROMEK
კატეგორია
სპეციალური დანიშნულების ექსკავატორები
HMK 230 LC MH Being produced with developed hydraulic system design, hi̇dromek’s new h4 series excavators offer an outstanding performance by working faster, more productively and more efficiently. h4 series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.
General Information
Producing solutions for different applications, HİDROMEK fully meets customer expectations in this segment with HMK 230 LC MH model developed specifically for material handling, recycling and industrial facilities.
სპეციფიკაციები
ENGINE
Brand - Model
ISUZU
Type
Water-cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Maximum Power
161 HP (124 kW) @2000 rpm
Maximum Torque
670 Nm @1600 rpm
Displacement
5193 cc
Number of cylinders
4
Bore x Stroke
115 mm x 125 mm
Emission Class
Stage-IIIA
HYDRAULIC SYSTEM
Type
Double variable displacement axial piston pumps
Maximum Flow
2 x 233 L/min
Pilot Pump
20 L/min
Attachment
350 kgf/cm2
Power Boost
370 kgf/cm2
Travel
350 kgf/cm2
Swing
306 kgf/cm2
Pilot
40 kgf/cm2
SWING SYSTEM
Swing Speed
12,60 rpm
TRAVEL
Maximum Drawbar Pull
18.310 kgf
High Speed
5,8 km/h
Low Speed
3,8 km/h
WORKING DIMENSIONS
Grapple
2.350 mm
Maximum Reach at Ground Level
10.860 mm
Boom Dimension
6.600 mm
Arm Dimensions
4.600 mm
Maximum Digging Depth
4.100 mm
Maximum Dumping Height
10.900 mm
OPERATING WEIGHT
OPERATING WEIGHT
23.600 kg
