სპეციალური დანიშნულების ექსკავატორები

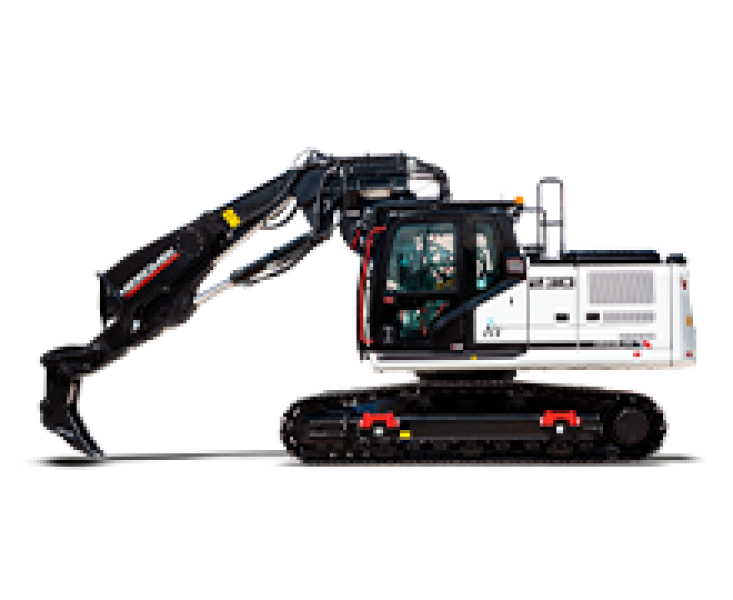

HMK 230 LC TX
HMK 230 LC TX
ბრენდი
HIDROMEK
კატეგორია
სპეციალური დანიშნულების ექსკავატორები
HMK 230 LC TX Being produced with developed hydraulic system design, hi̇dromek’s new h4 series excavators offer an outstanding performance by working faster, more productively and more efficiently. h4 series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.
General Information
Producing solutions for different applications, HİDROMEK fully meets customer expectations in this segment with HMK 230 LCTX model specially developed for working in tunnel conditions.
სპეციფიკაციები
ENGINE
Brand - Model
ISUZU
Type
: Water-cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Maximum Power
161 HP (120 kW) @2000 rpm
Maximum Torque
151 HP (113 kW) @2000 rpm
Displacement
5193 cc
Number of cylinders
4
Bore x Stroke
115 mm x 125 mm
Emission Class
Stage-IIIA
DIGGING PERFORMANCE
Arm Crowd Force (SAE)
20700 kgf
At Power Max. Force (SAE)
21900 kgf
At Power Max. Force (SAE)
17700 kgf
Ripper Digging Force (SAE)
16800 kgf
At Power Max. Force (ISO)
22700 kgf
Arm Crowd Force (ISO)
22200 kgf
At Power Max. Force (ISO)
23400 kgf
Ripper Digging Force (ISO)
21500 kgf
HYDRAULIC SYSTEM
Type
Double variable displacement axial piston pumps
Maximum Flow
2 x 221 L/min
Pilot Pump
20 L/min
Attachment
350 kgf/cm2
Power Boost
370 kgf/cm2
Travel
350 kgf/cm2
Swing
306 kgf/cm2
Pilot
40 kgf/cm2
SWING SYSTEM
Swing Speed
11,9 rpm
TRAVEL
Maximum Drawbar Pull
18.365 kgf
High Speed
5,8 km/h
Low Speed
3,8 km/h
WORKING DIMENSIONS
Maximum Working width
7.040 mm
Maximum Reach at Ground Level
5.180 mm
Boom Dimension
2.700 mm
Arm Dimensions
3.890 mm
OPERATING WEIGHT
OPERATING WEIGHT
23.100 kg
