სპეციალური დანიშნულების ექსკავატორები

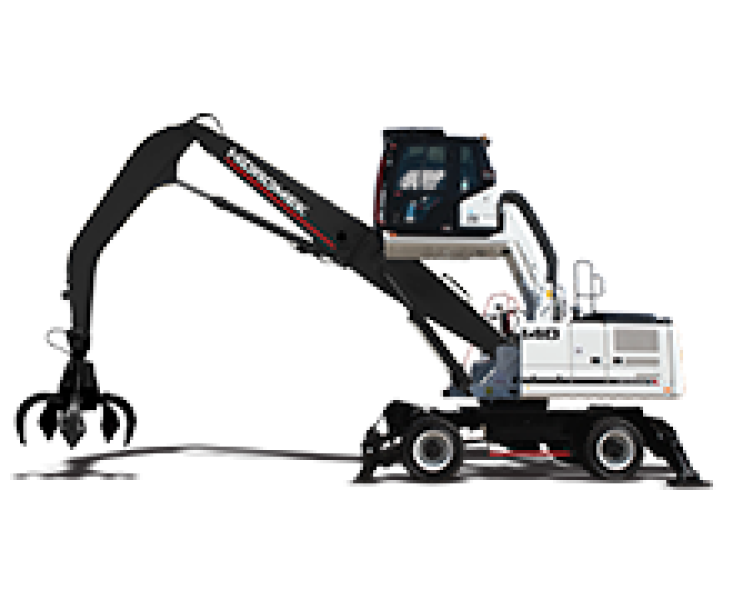

HMK 140 W MH
HMK 140 W MH
ბრენდი
HIDROMEK
კატეგორია
სპეციალური დანიშნულების ექსკავატორები
HMK 140 W MH Hi̇dromek, which find solutions for different types of applications, satisfy the expectation of the clients in this segment with its special model hmk 140 wmh designed for recycling, industrial and material handling facilities.
General Information
H4 Series HMK 140 W MH introduces innovations such as improved performance, ease of control and versatility. It allows the operator to have perfect command ability and reliability and ensures low fuel consumption, easy maintenance and operator comfort. Along with other pieces of equipment, it is the leader in its class.
სპეციფიკაციები
ENGINE
Brand - Model
ISUZU
Type
Water cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Maximum Power
123 HP (92 kW) @2200 rpm
Maximum Torque
420 Nm @1800 rpm
Displacement
2999 cc
Number of cylinders
4
Bore x Stroke
95,4 mm x 104,9 mm
HYDRAULIC SYSTEM
Type
Double variable displacement axial piston pumps
Maximum Flow
2 x 160 L/min
Pilot Pump
20 L/min
Attachment
330 kgf/cm2
Power Boost
360 kgf/cm2
Travel
360 kgf/cm2
Swing
260 kgf/cm2
Pilot
40 kgf/cm2
SWING SYSTEM
Swing Speed
13 rpm
TRAVEL
Maximum Drawbar Pull
7.715 kgf
High Speed
32 km/h
Low Speed
8 km/h
WORKING DIMENSIONS
Grapple
1.500 mm
Maximum Digging Reach
9.140 mm
Maximum Reach at Ground Level
8.940 mm
Boom Dimension
5.600 mm
Arm Dimensions
3.600 mm
Maximum Digging Depth
3.260 mm
OPERATING WEIGHT
OPERATING WEIGHT
17.900 kg
