მუხლუხა ექსკავატორი

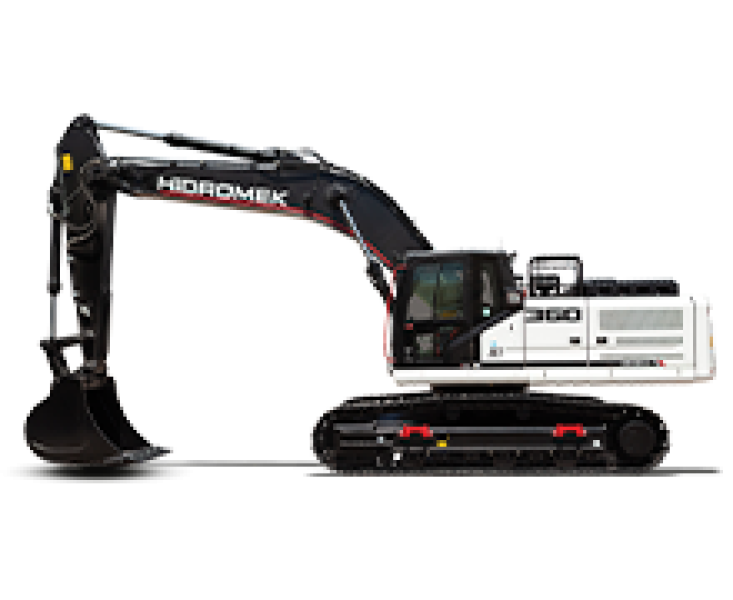

HMK 360 LC

HMK 360 LC

HMK 360 LC

ბრენდი HIDROMEK

HMK 360 LC Produced to have reinforced heavy duty construction considering maximum performance, long life and smooth operation in severe field conditions, hi̇dromek excavators ensure more durability with the improvements made in the new h4 series.

General Information

  • Takes productivity to the next level!

    HMK 360 LC crawler excavator provides high performance with its powerful engine and dynamics structure. Thanks to its boom and arm structure and earthmoving type bucket, it offers advantages especially in earthmoving works, digging and loading operations, and increases work efficiency to a higher level.

    HMK 360 LC makes a difference in earthmoving!

    HMK 360 LC makes a difference with its high performance in all kinds of works such as eartmoving, area arrangement, construction site preparations etc. through its tonnage, boom-arm length and earthmoving type bucket.

სპეციფიკაციები

OPERATING WEIGHT

OPERATING WEIGHT 38.100 kg

ENGINE

Maximum Power 284 HP (212 kW) @2000 rpm
Maximum Torque 1080 Nm @1500 rpm
Brand - Model ISUZU-6HK1X
Type Water-cooled, 4 cycle, 6 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Number of cylinders 6
Bore x Stroke 115 mm x 125 mm
Displacement 7790 cc

HYDRAULIC SYSTEM

Pump Type Double variable displacement axial piston pumps
Maximum Flow 2 x 290 L/min
Pilot Pump 28.5 L/min
Attachment 350 kgf/cm2
Travel 350 kgf/cm2
Swing 285 kgf/cm2
Pilot 40 kgf/cm2

SWING SYSTEM

Swing Speed 9,3 rpm

TRAVEL

Maximum Drawbar Pull 30.726 kgf
High Speed 4,9 km/h
Low Speed 2,9 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO) 21.100 kgf
Bucket capacity Light M. 2.1 m3
Arm Breakout Force (ISO) 16.400 kgf

WORKING DIMENSIONS

Boom Dimension 6.500 mm
Arm Dimension 3.200 mm
Maximum Digging Depth 7.630 mm
Maximum Reach at Ground Level 11.180 mm
