მუხლუხა ექსკავატორი

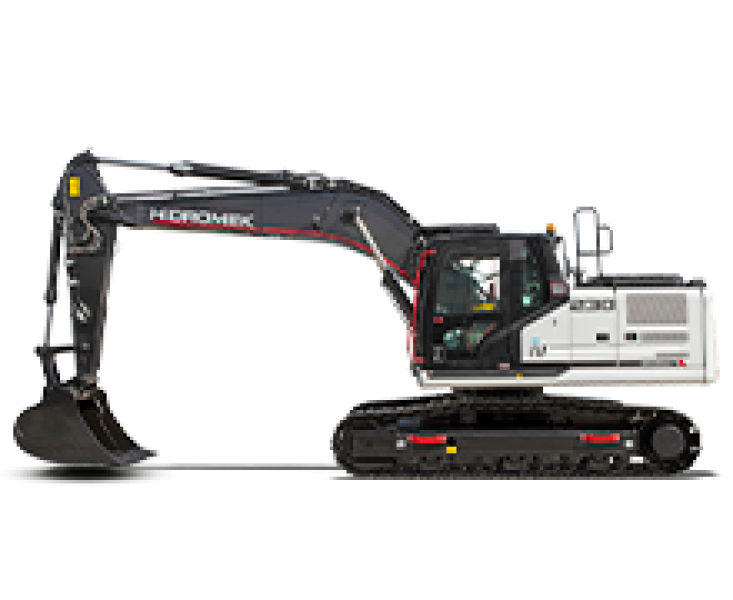

HMK 230 LC

HMK 230 LC

HMK 230 LC

ბრენდი HIDROMEK

HMK 230 LC Hi̇dromek's new hmk 145 lc sr which belongs to h4 series produces more work with less fuel; hence, provides maximum efficiency and productivity for its user.

General Information

  • More work within less time

    17 % More productive*

    Shortening the work cycle time with bigger bucket capacity and speed, H4 Series carry the productivity to the top level with their new technology.

    21% More efficient*

    With improvements to the attachment and hydraulic group, H4 Series excavators ensure more work within less time.

    7% Faster *

    With faster hydraulic movements due to developed hydraulic system design, H4 Series excavators ensure more work within less time.

    Safe working environment

    ROPS&FOPS cabin

    Having the standards of ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), H4 Series excavators provide maximum safety and durability.

    Wide vision capacity

    Designed with giving special importance to occupational safety, H4 Series ensure excellent vision by minimizing the blind spot on the side and rear cameras. Along with the increase in the number of led headlights, the night vision is significantly improved on H4 Series excavators; in addition, there are also red handles and warning labels providing maximum safety for the operator.

    Audio warning systems

    H4 Series excavators enable safer working environment with their automatic starting horn, swing warning system and travel warning system.

    *The data are prepared in comparison with the previous serie in HP mode.

სპეციფიკაციები

OPERATING WEIGHT

OPERATING WEIGHT 23.400 kg

ENGINE

Maximum Power 161 HP (120 kW) @2000 rpm
Maximum Torque 151 HP (113 kW) @2000 rpm
Brand - Model ISUZU GI-4HK1X
Type Water-cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Number of cylinders 4
Bore x Stroke 115 mm x 125 mm
Displacement 5193 cc

HYDRAULIC SYSTEM

Pump Type Double variable displacement axial piston pumps
Maximum Flow 2 x 221 L/min
Pilot Pump 20 L/min
Attachment 350 kgf/cm2
Power Boost 370 kgf/cm2
Travel 350 kgf/cm2
Swing 306 kgf/cm2
Pilot 40 kgf/cm2

SWING SYSTEM

Swing Speed 11,3 rpm

TRAVEL

Maximum Drawbar Pull 18.365 kgf
High Speed 5,8 km/h
Low Speed 3,8 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO) 15.100 (15.900) kgf
Bucket capacity 1,10 m3
Arm Breakout Force (ISO) 10.400 (11.000) kgf

WORKING DIMENSIONS

Boom Dimension 5.70 mm
Arm Dimension 2.92 mm
Maximum Digging Depth 6.730 mm
Maximum Reach at Ground Level 9.810 mm
