მუხლუხა ექსკავატორი

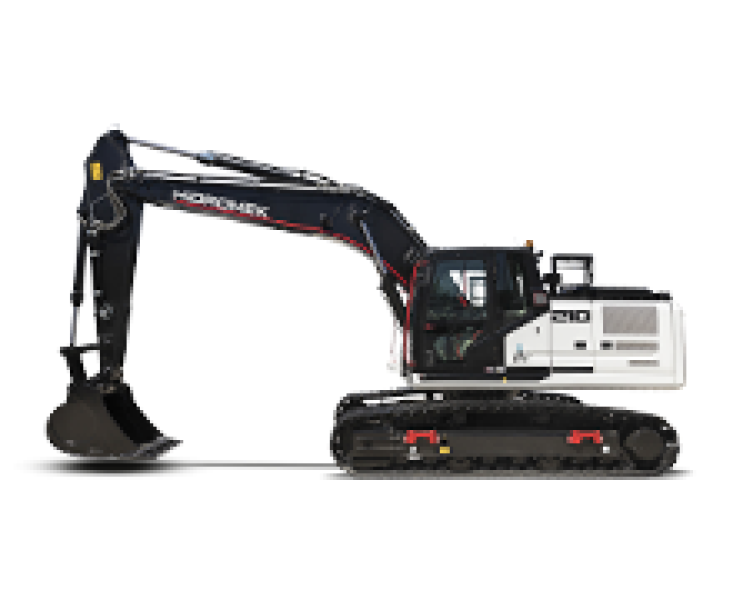

HMK 210 LC
სპეციფიკაციები
OPERATING WEIGHT
OPERATING WEIGHT
22.050 kg
ENGINE
Maximum Power
161 HP (120 kW) @2000 rpm
Maximum Torque
657 Nm @1500 rpm
Brand - Model
ISUZU GI-4HK1X
Type
Water-cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Number of cylinders
4
Bore x Stroke
115 mm x 125 mm
Displacement
5193 cc
Emission Class
R96 (Stage-IIIA)
HYDRAULIC SYSTEM
Pump Type
Double variable displacement axial piston pumps
Maximum Flow
2 x 221 L/min
Pilot Pump
20 L/min
Attachment
350 kgf/cm2
Power Boost
370 kgf/cm2
Travel
350 kgf/cm2
Swing
306 kgf/cm2
Pilot
40 kgf/cm2
SWING SYSTEM
Swing Speed
11,9 rpm
TRAVEL
Maximum Drawbar Pull
18.365 kgf
High Speed
5,7 km/h
Low Speed
3,8 km/h
DIGGING PERFORMANCE
Bucket Digging Force (ISO)
13.700 kgf
Bucket capacity
1,0 m3
Arm Breakout Force (ISO)
10.700 kgf
WORKING DIMENSIONS
Boom Dimension
5.70 m
Arm Dimension
2.92 m
Maximum Digging Depth
6.790 mm
Maximum Reach at Ground Level
9.870 mm
