HMK 160 CS

HMK 160 CS

HMK 160 CS

ბრენდი HIDROMEK

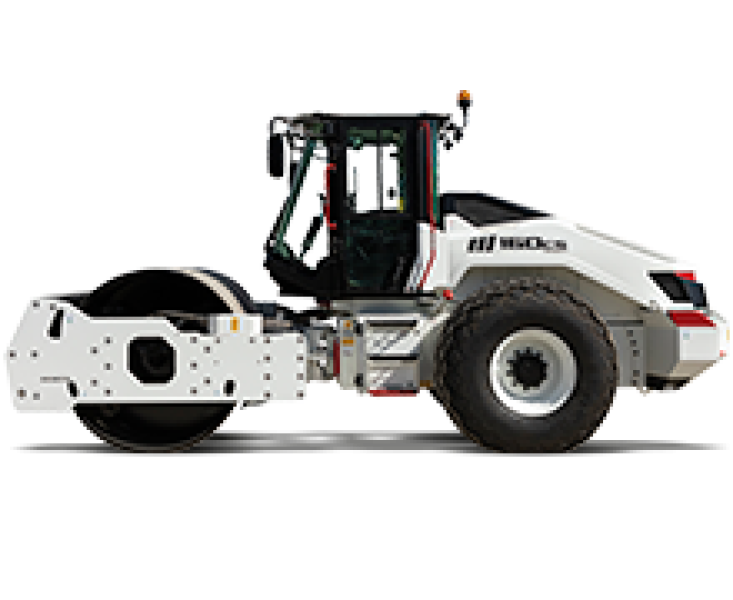

HMK 160 CS Hi̇dromek soil compactors overcome hard works easily with extreme compaction performance. hmk 110 cs, hmk 130 cs and hmk 160 cs soil compactors having maximum usability and high functionality in various applications enable to work efficiently and with high performance in many areas such as public services and road construction works as well as construction sites of industrial, commercial and large residential areas.

General Information

  • Superior Compression! Superior Efficiency!

    HİDROMEK soil compactors work efficiently and with high performance by providing high level of compaction. In working areas, they make the necessary compaction in accordance with the structure of the soil with minimum number of passes. Having two working range as high eccentric moment and low eccentric moment, HİDROMEK soil compactors enable to compact different types of material with these features. While high eccentric moment provides effective operation on thick soil layer with high vibration energy, low eccentric moment offers superior surface sealing in the final compaction process allowing thin layers and fine works to be done easily.

    HİDROMEK soil compactors having high compaction feature in their class also increase performance in all conditions with their superior climbing ability on slopes.

სპეციფიკაციები

ENGINE

Brand - Model DEUTZ
Maximum Power 170 HP (128 kW) @2200 rpm
Type High power and torque output, water cooled, turbocharged diesel engine.
Maximum Torque 688 Nm @1600 rpm
Displacement 6067 cc
Number of Cylinders 6 in line
Bore x Stroke 101 mm x 126 mm
Emission Class Stage lllA / Tier 3 (EU/EPA)

STEERING SYSTEM

Oscillation angle ± 12˚
Articulation angle ± 35˚

TIRES

Rear Tires 23.1-26 12 PR

VIBRATION

Vibration frequency, for high amplitude/for low amplitude 26,5 / 28,5 Hz
Amplitude, high/low 2,30/0,9 mm
Centrifugal force, for high amplitude/for low amplitude 349/154 kN

DRIVING SPEED

1st Gear 4 km/h
2st Gear 6 km/h
3st Gear 7 km/h
4st Gear 12 km/h
Maximum slope with vibration / without vibration % 44 / % 47

WEIGHT

Drum (front axle load) 10.650 kg
OPERATING WEIGHT 16.500 kg
Wheels (rear axle load) 3.170 mm
