მუხლუხა ექსკავატორი

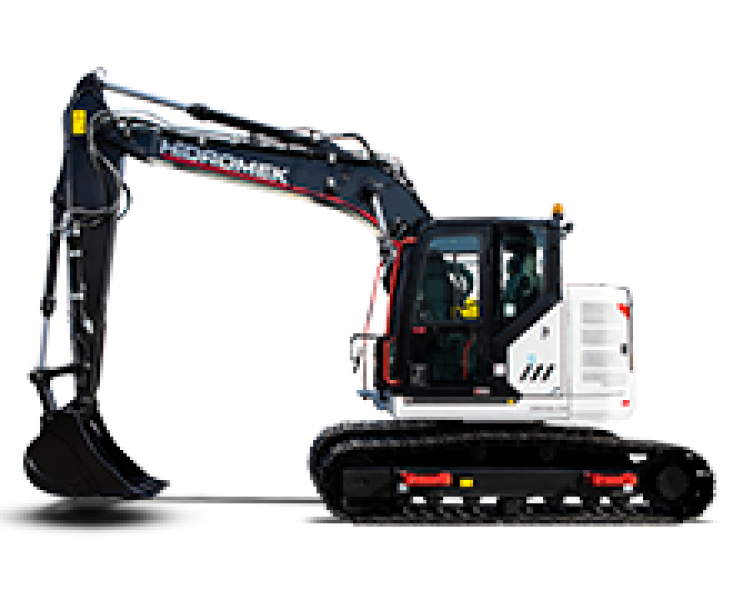

HMK 145 LC SR

HMK 145 LC SR

HMK 145 LC SR

ბრენდი HIDROMEK

HMK 145 LC SR Hi̇dromek's new hmk 145 lc sr which belongs to h4 series produces more work with less fuel; hence, provides maximum efficiency and productivity for its user.

General Information

  • Dynamic!

    Ensures superior performance in all fields and conditions with its excellent maneuverability and easy usage provided through its high performance engine, quickness and short swing radius.

    Innovative!

    Provides top level operator safety and comfort with its technological equipment and electronic system.

    Compact!

    Due to its compact structure, it offers powerful and precise operation for its users especially in urban areas, narrow spaces and in different working fields such as construction, landscaping, material flooring and leveling.

    The most comfortable way to work in every field

    HMK 145 LC SR provides easy operation in urban areas and narrow spaces due to its shorter tail structure and swing radius compared to standard designed machines. Having high lifting capacity due to its short tail design and counterweight, HMK 145 LC SR also offers versatile usage with many different attachment options.

სპეციფიკაციები

OPERATING WEIGHT

OPERATING WEIGHT 16.500 kg

ENGINE

Maximum Power 98 HP (73 kW) @2000 rpm
Maximum Torque 385 Nm @1600 rpm
Brand - Model ISUZU AJ-4JJ1X
Type Water cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, electronic diesel engine
Number of cylinders 4
Bore x Stroke 95,4 mm x 104,9 mm
Displacement 2999 cc

HYDRAULIC SYSTEM

Pump Type Double variable displacement axial piston pumps
Maximum Flow 2 x 129 L/min
Pilot Pump 20 L/min
Attachment 350 kgf/cm2
Power Boost 372 kgf/cm2
Travel 350 kgf/cm2
Swing 300 kgf/cm2
Pilot 40 kgf/cm2

SWING SYSTEM

Swing Speed 11,3 rpm

TRAVEL

Maximum Drawbar Pull 11.105 kgf
High Speed 5,7 km/h
Low Speed 3,4 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO) 9500 (10000) kgf
Bucket capacity 0,6 m3
Arm Breakout Force (ISO) 7300 kgf

WORKING DIMENSIONS

Boom Dimension 4600 mm
Arm Dimension 2300 mm
Maximum Digging Depth 5360 mm
Maximum Reach at Ground Level 8040 mm
