მუხლუხა ექსკავატორი

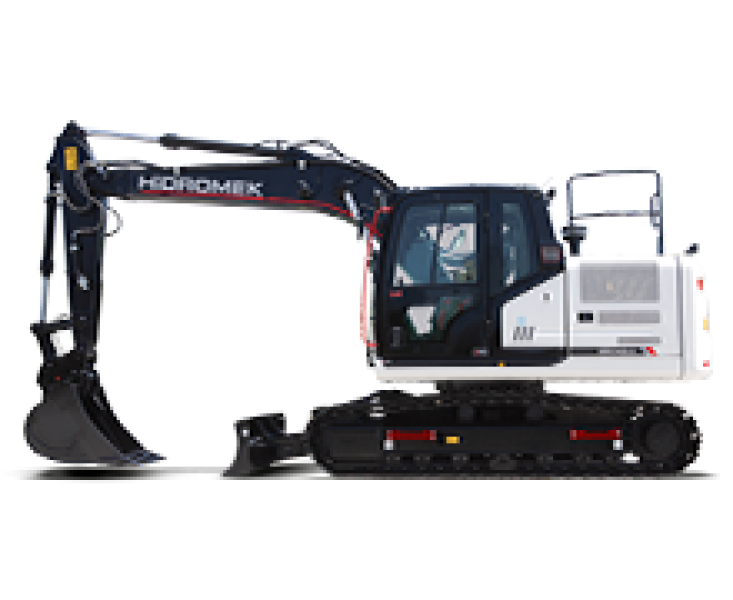

HMK 140 LC

HMK 140 LC

HMK 140 LC

ბრენდი HIDROMEK

HMK 140 LC Providing the required power for the job with the advantage of having high performance in different working fields, HMK 140 LC offers durability, easy usage, operator comfort and safety together with an enjoyable working environment.

General Information

  • More durable

    Produced to have reinforced heavy duty construction considering maximum performance, long life and smooth operation in severe field conditions, HİDROMEK excavators ensure more durability with the improvements made in the new H4 Series. With their reinforced heavy duty construction produced at HİDROMEK’s modern production facilities and going through sensitive quality-control processes, H4 Series excavators have excellent durability.

    Safe working environment

    ROPS&FOPS cabin

    Having the standards of ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), H4 Series excavators provide maximum safety and durability.

    Wide vision capacity

    Designed with giving special importance to occupational safety, H4 Series ensure excellent vision by minimizing the blind spot on the side and rear cameras. Along with the increase in the number of led headlights, the night vision is significantly improved on H4 Series excavators; in addition, there are also red handles and warning labels providing maximum safety for the operator.

    Audio warning systems

    H4 Series excavators enable safer working environment with their automatic starting horn, swing warning system and travel warning system.

სპეციფიკაციები

OPERATING WEIGHT

Operating Weight 15.000 kg

ENGINE

Maximum Power 106,7 HP (78,5 kW) @2000 rpm
Maximum Torque 375 Nm @1800 rpm
Brand - Model ISUZU 4JJ1X
Type Water cooled, 4 cycle, 4 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine
Number of cylinders 4
Bore x Stroke 95,4 mm x 104,9 mm
Displacement 2999 cc

HYDRAULIC SYSTEM

Pump Type Double variable displacement axial piston pumps
Maximum Flow 2 x 129 L/min
Pilot Pump 20 L/min
Attachment 350 kgf/cm²
Power Boost 372 kgf/cm²
Travel 350 kgf/cm²
Swing 300 kgf/cm²
Pilot Pilot

SWING SYSTEM

Swing Speed 11,1 rpm

TRAVEL

Maximum Drawbar Pull 11.600 kgf
High Speed 5.60 km/h
Low Speed 3.30 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO) 10.000 kgf
Bucket capacity 0,6 m³
Arm Breakout Force (ISO) 7.300 kgf

WORKING DIMENSIONS

Boom Dimension 4.600 mm
Arm Dimension 2.300 mm
Maximum Digging Depth 5.360 mm
Maximum Reach at Ground Level 8.070 mm
