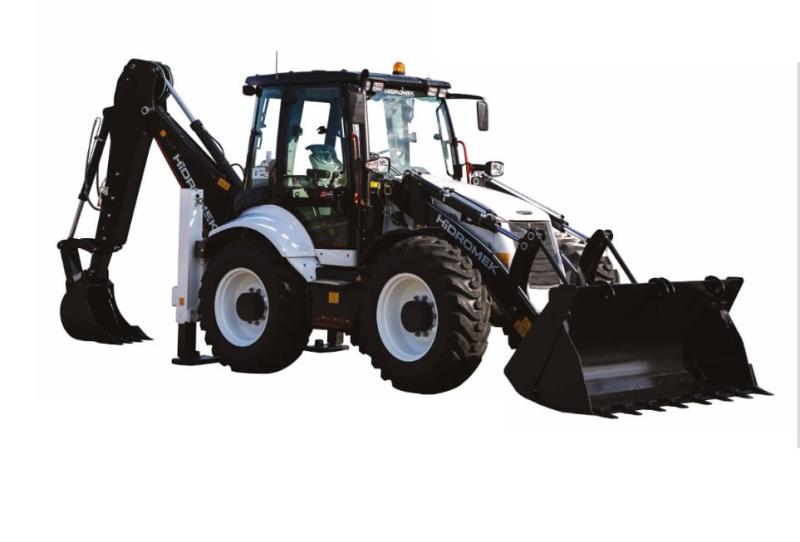

HMK 102S ALPHA

HMK 102S ALPHA

HMK 102S ALPHA

K4 Series, designed for severe geographical conditions and heavy working conditions, increases your productivity with its strong structure and efficient hydraulic system providing maximum breakout force even at lower revolutions and having high oil flow. HİDROMEK K4 Series backhoe loaders facilitating works in excavation, infrastructure, superstructure, agriculture, forestry, landscaping and industrial areas thanks to their use with different attachments such as leveling shovel, forklift, hammer, auger, log, pendulum bucket, snow plow, scrap and paper collection bucket, bottom opening (big bag) bucket, stone collecting bucket, trapeze bucket, ripper and polyp attachment provide the benefits you expect. 20% Faster K4 series backhoe loaders with accelerated movements through improved loader cylinder design do a lot of work in a short time during loading and unloading operations. 3% More Efficient K4 Series backhoe loaders produce more work with less fuel as a result of the improvements made in cylinder design.

სპეციფიკაციები

ENGINE

Brand - Model Perkins, 904J-E36TA
Maximum Power 100 HP (74,4 kW) @2200 rpm
Displacement 3,621 cc
Type High power and torque output, water cooled turbocharged diesel engine.
Maximum Torque 430 Nm @1500 rpm
Bore & Stroke ø 98 x 120 mm
Emission Class EU:Stage 5, US: Tier 4 final

HYDRAULIC SYSTEM

Pressure 227 bar
Type Simple, reliable and high efficien tandem gear pump
Auxilary pump flow 57,2 L/min @2200 rpm
Main pump flow 90L/min @2200 rpm

TIRES

Front 16,9 - 28 14 Ply Rating
Rear 16,9 - 28 14 Ply Rating

DRIVING SPEED

1st Gear 4 km/h
2st Gear 7 km/h
3st Gear 9 km/h
4st Gear 15 km/h
5st Gear 24 km/h
6st Gear 40 km/h

LOADER PERFORMANCE

Maximum loader bucket breakout force 7380 kgf
Loader Bucket Capacity 1.1 m³
Maximum loading arm breakout force 7380 kgf
Lifting capacity to maximum height 3660 kg

BACKHOE PERFORMANCE

Backhoe Bucket Capacity 0.18 m³
Maximum backhoe bucket breakout force 7020 kgf
Maximum arm breakout force 3160 kgf

OPERATING WEIGHT

Operating Weight 9.650 kg

TRANSMISSION

Type Autoshift transmission for heavy duty service
Number of Gear 6 forward, 3 reverse gears
